Project 1.1.2: CAR TRAVIGATOR BLINKING

Description This project teaches how to program an LED to turn on and off within a time interval (Blink) without a human being having to turn on and off the switch.
Use case This knowledge forms the basis for home automation. It is also a steppingstone to controlling smart lights, leading to advanced lighting setups in modern smart homes.

Components (Things You will need)

LED Arduino Uno Arduino USB Cable Breadboard Jumper Wires

Building the circuit

Things Needed:

  • Arduino Uno = 1
  • Arduino USB cable = 1
  • White LED = 1
  • Red jumper wires = 1
  • Blue jumper wires = 1

Mounting the component on the breadboard

Step 1: Take the breadboard, the white LED and insert it into the vertical connectors on the breadboard.

LED fixed on breadboard.

NB: Make sure you identify where the positive pin (+) and the negative pin (-) is connected to on the breadboard. The longer pin of the LED is the positive pin and the shorter one, the negative PIN.

WIRING THE CIRCUIT

Things Needed:

  • Red male-male-to-male jumper wires = 1
  • Blue male-to-male jumper wires = 1

Step 2: Connect one end of red male-to-male jumper wire to the positive pin of the white LED on the breadboard and the other end to hole number 6 on the Arduino UNO.

LED fixed on breadboard

Step 3: Connect one end of the blue male-to-male jumper to the negative pin of the white LED on the breadboard and the other end to GND on the Arduino UNO.

LED fixed on breadboard.

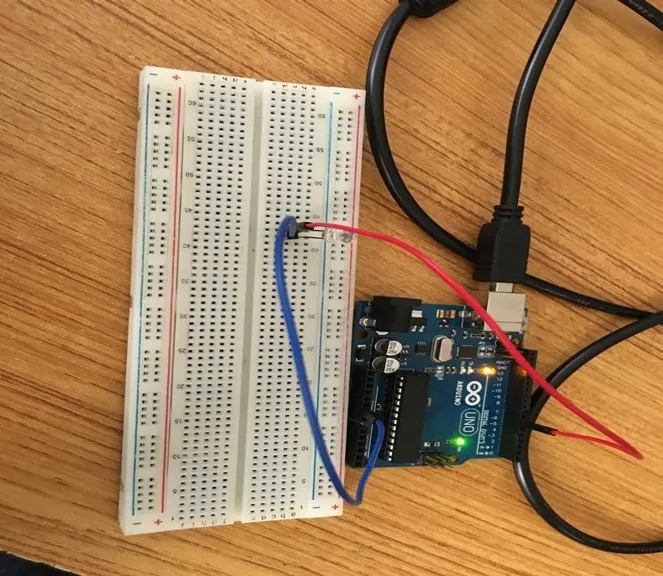

make sure you connect the arduino usb blue cable to the Arduino board.

LED fixed on breadboard.

just as shown above, connect your USB cable to the Arduino board and to your laptop.

PROGRAMMING

Step 1: Open your Arduino IDE. See how to set up here: Getting Started.

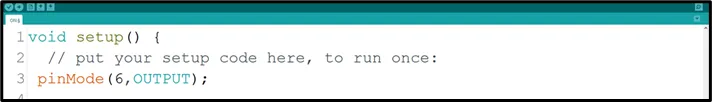

Step 2: Type pinMode (6, OUTPUT); in the void Setup() function.

Pinmode decalration.

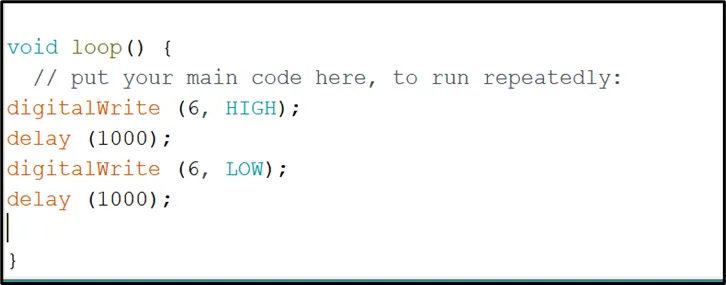

Step 3: Type the following codes in the void loop function as shown below;

digitalWrite (6, HIGH);
delay (1000);
digitalWrite (6, LOW);
delay (1000);
LED fixed on breadboard.

Step 4: Save your code. See the Getting Started section

Step 5: Select the arduino board and port See the Getting Started section:Selecting Arduino Board Type and Uploading your code.

Step 6: Upload your code. See the Getting Started section:Selecting Arduino Board Type and Uploading your code

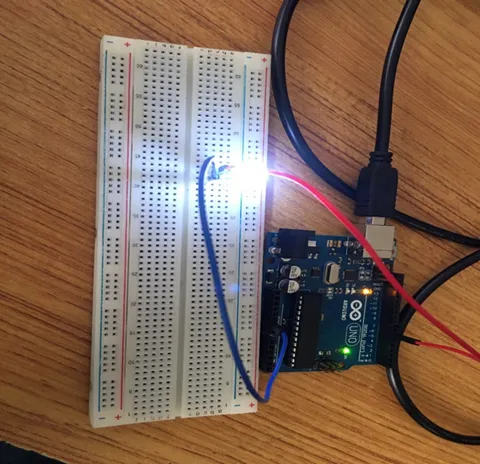

OBSERVATION

LED fixed on breadboard. LED fixed on breadboard.

CONCLUSION

To sum up, the one LED blink project demonstrates a foundational concept in electronics and programming. Through this simple yet illuminating endeavor, learners grasp the essentials of hardware interfacing, coding logic, and timing control. This project lays the groundwork for more advanced explorations while showcasing the transformative power of just a single LED, sparking curiosity and creativity in the world of DIY electronics.
