Project 1.1.8: PARTY LIGHTS

Description	This project is focused on turning 4 lights on and off one after the other.
Use case	Entering into a party area, you might see the room glowing with four different beautiful bright lights turning on and going off one after the other which makes the room very nice and giving it an attractive/decorative setting.

Components (Things You will need)

Building the circuit

Things Needed:

• Arduino Uno = 1
• Arduino USB cable = 1
• White LED = 1
• Red LED = 1
• Yellow LED = 1
• Green LED = 1
• Red jumper wires = 1
• Blue jumper wires = 1
• Black jumper wires = 1
• Green jumper wires = 1
• Purple jumper wires = 1
• Orange jumper wires = 1
• Brown jumper wires = 1

Mounting the component on the breadboard

Mounting the component on the breadboard

Step 1: Take the breadboard, the white LED and insert it into the vertical connectors on the breadboard.

.

NB: Make sure you identify where the positive pin (+) and the negative pin (-) is connected to on the breadboard. The longer pin of the LED is the positive pin and the shorter one, the negative PIN.

WIRING THE CIRCUIT

Step 2: Connect one end of red male-to-male jumper wire to the positive pin of the white LED on the breadboard and the other end to hole number 6 on the Arduino UNO.

.

Step 3: Connect one end of the blue male-to-male jumper to the negative pin of the white LED on the breadboard and the other end to GND on the Arduino UNO.

.

Step 4: Take the red LED and insert it into the vertical connectors on the breadboard.

.

Step 5: Connect one end of the black male-to-male jumper wire to the positive pin of the red LED on the breadboard and the other end to hole number 5 on the Arduino UNO.

Step 6: Connect one end of the black male-to-male jumper wire to the positive pin of the red LED on the breadboard and the other end to hole number 5 on the Arduino UNO.

.

Step 7: Connect one end of the white male-to-male jumper wire to the negative pin of the white LED on the breadboard and the other end to GND on the Arduino UNO.

.

Step 8: Take the yellow LED and insert it into the vertical connectors on the breadboard.

.

Step 9: Connect one end of the green male-to-male jumper wire to the positive pin of the yellow LED on the breadboard and the other end to hole number 4 on the Arduino UNO.

.

Step 10: Connect one end of the purple male-to-male jumper wire to the negative pin of the yellow LED on the breadboard and the other end to GND on the Arduino UNO.

.

Step 11: Take the green LED and insert it into the vertical connectors on the breadboard.

.

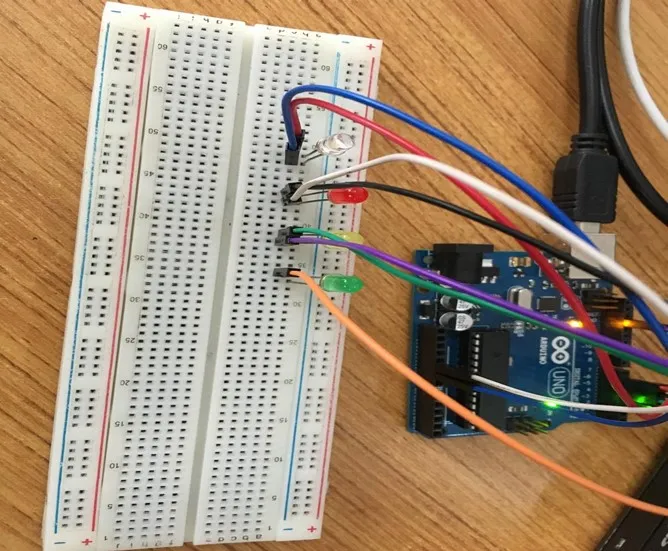

Step 12: Connect one end of the orange male-to-male jumper wire to the positive pin of the green LED on the breadboard and the other end to hole number 3 on the Arduino UNO.

.

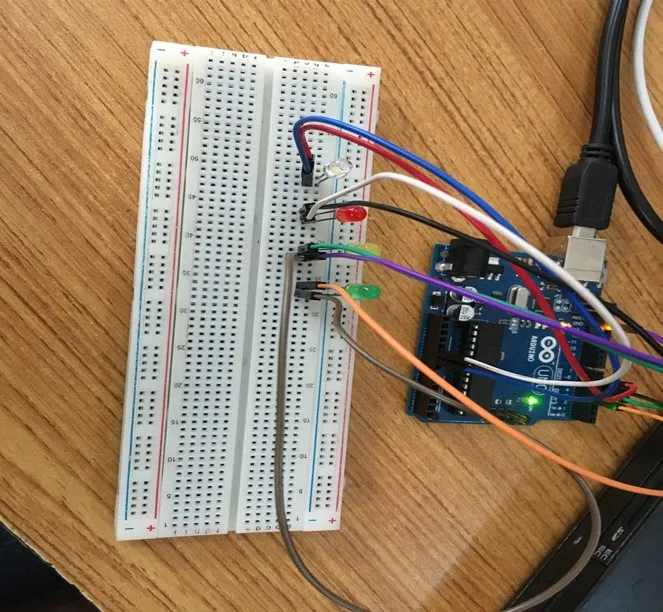

Step 13: Connect one end of the brown male-to-male jumper wire to the negative pin of the green LED on the breadboard and the other end to GND on the Arduino UNO.

.

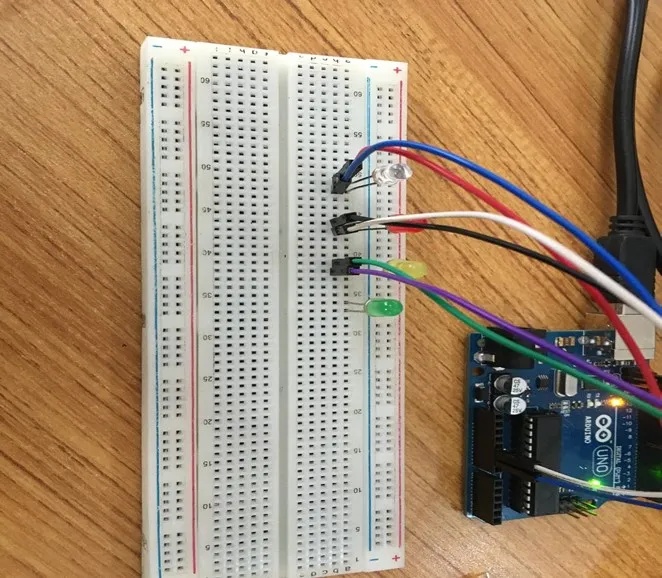

make sure you connect the arduino usb use blue cable to the Arduino board.

PROGRAMMING

Step 1: Open your Arduino IDE. See how to set up here: Getting Started.

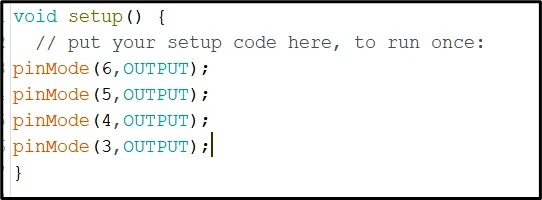

Step 2: Type the following codes in the void setup function as shown in the image below.

pinMode(6,OUTPUT);
pinMode(5,OUTPUT);
pinMode(4,OUTPUT);
pinMode(3,OUTPUT);

.

NB: pinMode will help the Arduino board to decide which port should be activated. The code below will turn off the three light bulbs.

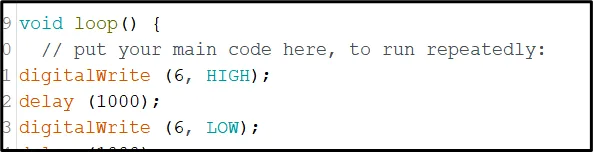

Step 3: Type the following codes in the void loop function.as shown in the image below;

digitalWrite (6, HIGH);
delay (1000);
digitalWrite (6, LOW);
delay (1000);

.

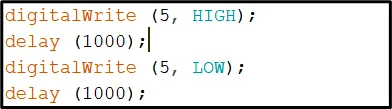

Step 4: let continue by ting the following codes;

digitalWrite (5, HIGH);
delay (1000);
digitalWrite (5, LOW);
delay (1000);

.

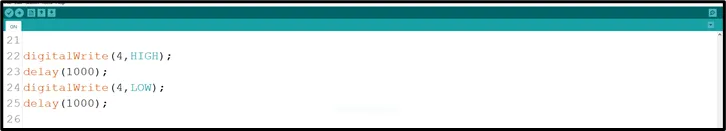

Step 5: let continue by ting the following codes;

digitalWrite (4, HIGH);
delay (1000);
digitalWrite (4, LOW);
delay (1000);

.

Step 6: let finish up by typing the following codes;

digitalWrite (3, HIGH);
delay (1000);
digitalWrite (3, LOW);
delay (1000);

.

Step 7: Save your code. See the Getting Started section

Step 8: Select the arduino board and port See the Getting Started section:Selecting Arduino Board Type and Uploading your code.

Step 9: Upload your code. See the Getting Started section:Selecting Arduino Board Type and Uploading your code

OBSERVATION

.

CONCLUSION

In conclusion, the project involving the simultaneous turning on of four LEDs without any blinking showcases a foundational grasp of parallel LED control. By activating all four LEDs concurrently, learners gain insight into basic circuitry connections and the principle of simultaneous output coordination. This project serves as a cornerstone for more intricate electronics endeavors while underscoring the significance of synchronized actions, laying the groundwork for further exploration in electronics and creative applications.
