Project 1.7.0: ROBOT ARM-UP

| Description | In this project, you will learn how to control a servo motor using an Arduino Uno by setting it to move to one specific angle. This project introduces the basic concept of servo motor positioning and controlled movement used in simple automation systems.

| | --------------- | ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ | | Use case | Servo motors set to one angle can be used in systems such as automatic doors, camera stands, robotic arms, and car side mirrors where a fixed and accurate position is needed. |

Components (Things You will need)

Arduino Uno Arduino USB Cable Servo Motor Jumper wires

Building the circuit

Things Needed:

  • Arduino Uno = 1
  • Arduino Uno = 1
  • Arduino USB cable = 1
  • Servo Motor = 1
  • Servo Motor blade =1
  • Jumper Wires
  • Breadboard

Mounting the component on the breadboard

Step 1: Attach the Servo Arm Fix the servo arm (swing arm) onto the white rotating shaft of the servo motor and press it gently until it is firmly attached.

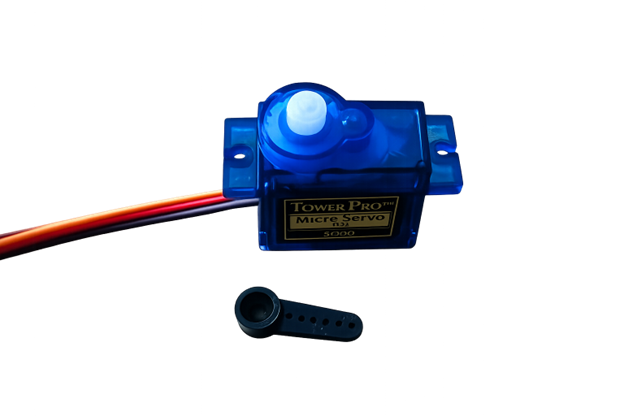

Angle fixed on Servo Motor.

NB: Make sure you identify where the positive pin (+) and the negative pin (-) is connected to on the breadboard. The longer pin of the LED is the positive pin and the shorter one, the negative PIN.

WIRING THE CIRCUIT

Things Needed:

  • Red male-male-to-male jumper wires = 1
  • Brown male-to-male jumper wires = 1
  • Yellow male-to-male jumper wires = 1

Step 2: Connect the servo power wires Attach a red jumper wire to the servo’s red wire and connect the other end to the 5V pin on the Arduino. This supplies power to the servo motor.

connect red jumper wire to red on Servo Motor.

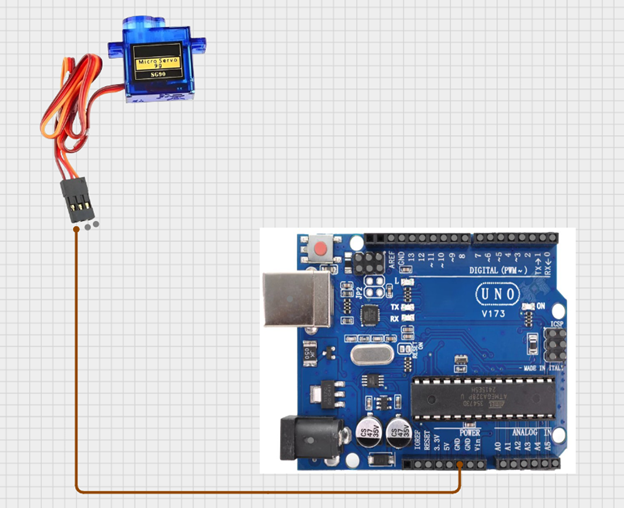

Step 3: Connect the ground wire Attach a brown jumper wire to the servo’s brown wire and connect the other end to the GND pin on the Arduino. This completes the electrical circuit.

connect brown jumper wire to brown on Servo Motor.

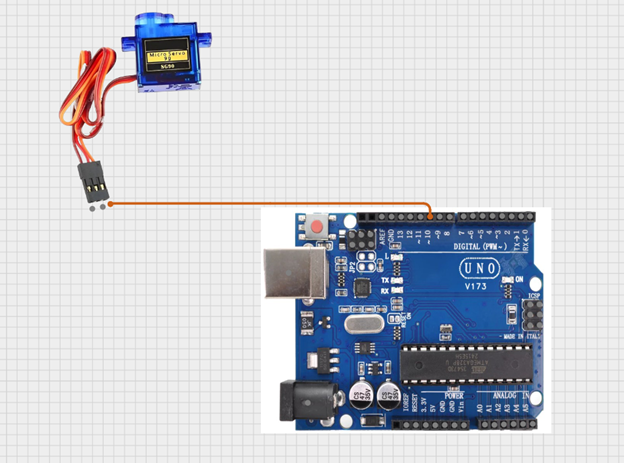

Step 4: Connect the control wire Attach an orange jumper wire to the servo’s orange wire and connect the other end to Digital Pin 10 on the Arduino. This wire sends movement commands from the Arduino to the servo motor.

connect orange jumper wire to orange on Servo Motor.

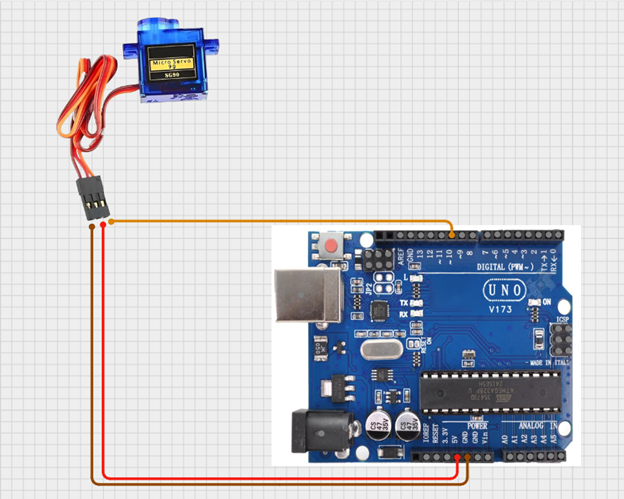

A combination of everything.

just as shown above, connect your USB cable to the Arduino board and to your laptop.

PROGRAMMING

Step 1: Open your Arduino IDE. See how to set up here: Getting Started.

Step 2: Type #include <Servo.h>; on line one before void Setup() function.

Include the Servo Library.

Step 3: Type Servo motor; on line two before void Setup() function.

Define the Servo Motor.

Step 4: Type motor.attach(10); inside the void Setup() function.

Attach the Servo to Pin 10:.

Step 5: Type motor.write (90); inside the void loop() function.

Set the Servo Angle (90):.

_NB: The swing arm can only turn up to 180 degrees. It will not turn to an angle about 180. You can change the angle by adjusting the number in the bracket. Example: motor.write(180); as seen below:

Set the Servo Angle (180):.

_NB: Here, motor.write(90); sets the servo to 90 degrees. You can change the angle by adjusting the number (from 0 to 180) in parentheses, such as motor.write(180);

Step 6: Save your code. See the Getting Started section

Step 7: Select the arduino board and port See the Getting Started section:Selecting Arduino Board Type and Uploading your code.

Step 8: Upload your code. See the Getting Started section:Selecting Arduino Board Type and Uploading your code

CONCLUSION

This project demonstrated how to control a servo motor using an Arduino to achieve precise angle movements. It helped in understanding the basics of motion control, programming, and how servo motors are used in real-life engineering and automation systems such as robotic arms, automatic doors, and smart devices
