Project 2.8.1:STEMAIDE Pushbutton And RGB Control

Description In this project, you will learn how to use a push button to control an RGB LED with an Arduino Uno. Each press of the button changes the LED to different colors, demonstrating how input devices can control multiple outputs.
Use case This project can be used in a decorative lighting system where a push button allows users to cycle through different RGB colors. For example, in a bedroom or event setup, pressing the button can change the lighting color to create different moods and atmospheres.

Components (Things You will need)

RGB Module Arduino Uno Arduino USB Cable Breadboard Jumper wire  Push Button

Building the circuit

Things Needed: - Arduino Uno = 1 - Arduino USB cable = 1 - RGB module= 1 - Breadboard = 1 - Pushbutton = 1 - Jumper Wires

Mounting the component on the breadboard

Things Needed:

  • Pushbutton = 1
  • Breadboard =1
  • RGB Module = 1

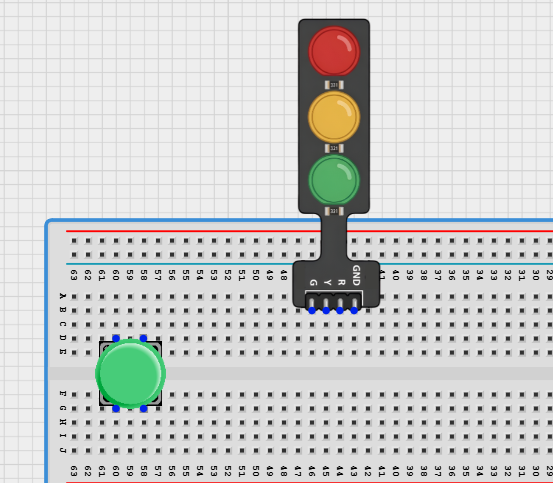

Step 1: Insert the push button into the breadboard by placing two pins on one side of the middle section and the other two pins on the opposite side. Then insert the RGB module into the breadboard, ensuring all four pins (Red, Green, Blue, and Negative) are properly placed and secured.

PushButton fixed on breadboard.

WIRING THE CIRCUIT

Things Needed:

  • Jumper Wires = 6
  • Arduino Uno Board = 1

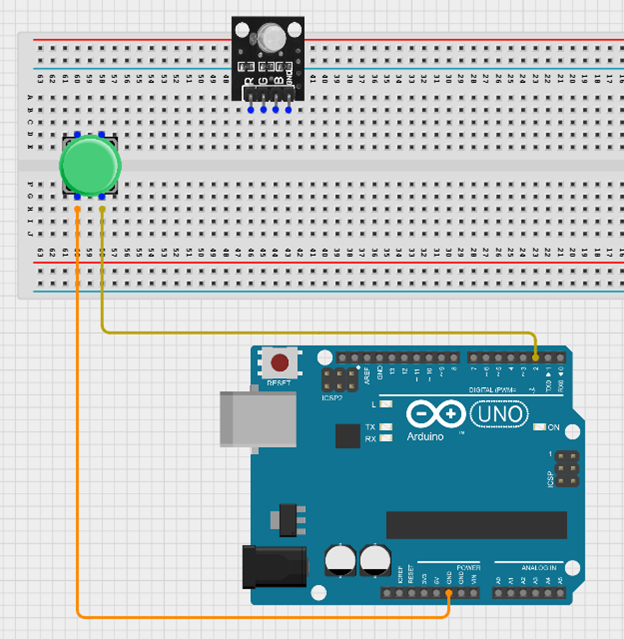

Step 2: Connect the push button to the Arduino Uno by using a jumper wire from one pin of the push button to Digital Pin 2, and another jumper wire from the other pin of the push button to GND on the Arduino Uno.

TrafficLightModule fixed on breadboard.

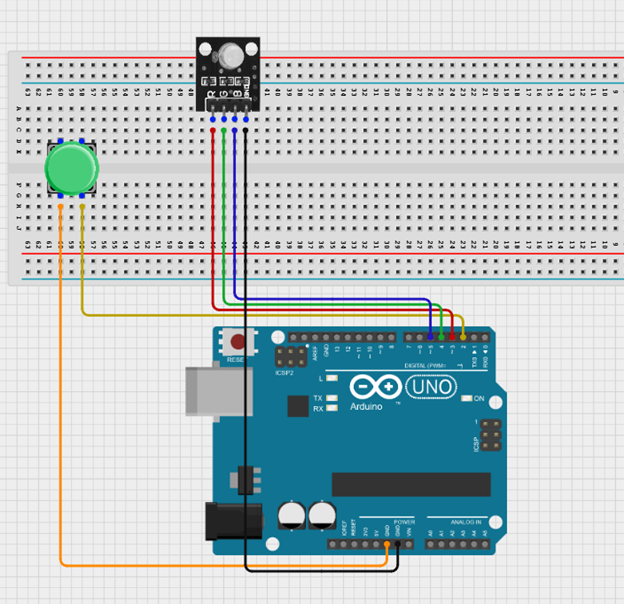

Step 3: Connect the RGB module to the Arduino Uno by linking the negative pin to GND using a black jumper wire, the Red pin to Digital Pin 3, the Green pin to Digital Pin 4, and the Blue pin to Digital Pin 5 using jumper wires.

LED fixed on breadboard

Step 4: Connect the USB port of the Arduino cable to the USB port of your laptop and the other side to the Arduino Uno Board.

LED fixed on breadboard.

PROGRAMMING

Step 1: Open your Arduino IDE. See how to set up here: Getting Started.

Step 2: Type const int buttonPin = 2; as shown in the picture below.

Pinmode decalration.

Step 3: Type int red = 3; as shown in the picture below.

Pinmode decalration.

Step 4: Press ENTER to go to the next line, type int green = 4; to define the green pin as shown in the picture below.

Pinmode decalration.

Step 5: Type int blue = 3;to define the pin for the blue pin as shown in the picture below.

Pinmode decalration.

Step 6: Type int buttonState = 0; as shown in the picture below.

Pinmode decalration.

Step 7: Type int currentColor = 0;to declare the current color state as shown in the picture below.

Pinmode decalration.

Step 8: Type Inside the curly brackets of the void setup () function, type pinMode (buttonPin, INPUT_PULLUP); to set the button pin as an input.

Pinmode decalration.

Step 9: After the (void setup ()) within the curly brackets type

pinMode (red, OUTPUT);
pinMode (green, OUTPUT);
pinMode (blue, OUTPUT); to set the RGB pins as an output.

Pinmode decalration.

Step 10: Inside the curly brackets of the void loop (), which is where you put your code to run repeatedly. Type As shown in the picture below.

buttonState = digitalRead (buttonPin);

As shown in the picture below.

Pinmode decalration.

Step 11: Type

(buttonState = LOW);
  currentColor++;

As shown in the picture below.

Pinmode decalration.

Step 12: Type

currentColor = currentColour % 4;

As shown in the picture below.

Pinmode decalration.

Step 13: Type

setColour (currentColor);
    delay (200);

As shown in the picture below.

Pinmode decalration.

Step 14: Type a function ``` cpp void setColor (int color){

to set the RGB LED colors. As shown in the picture below.

![Pinmode decalration](../../../assets/2.0/2.4. PushButton + RGB Module/code13.webp).

**Step 15:** Type Function
``` cpp
digitalWrite (red, LOW);
digitalWrite (green, LOW);
digitalWrite (blue, LOW);
}

to turn off all colors first. As shown in the picture below.

Pinmode decalration.

Step 16: Type the conditional statement to set the RGB color based on the current color.

if (color == 1) {
    digitalWrite (red, HIGH);
}

As shown in the picture below.

Pinmode decalration.

Step 17: Type the alternative for the conditional statement to set the RGB color based on the current color.

else if (color == 2) {
    digitalWrite (green, HIGH);
}

As shown in the picture below.

Pinmode decalration.

Step 18: Type the alternative for the conditional statement to set the RGB color based on the current color.

else if (color == 3) {
    digitalWrite (blue, HIGH);
}

As shown in the picture below.

Pinmode decalration.

Step 19: Type the alternative for the conditional statement to set the RGB color based on the current color.

else if (color == 0) {
    digitalWrite (red, LOW);
     digitalWrite (green, LOW);
  digitalWrite (blue, LOW);
}

As shown in the picture below.

Pinmode decalration.

Step 20: Save your code. See the Getting Started section

Step 21: Select the arduino board and port See the Getting Started section:Selecting Arduino Board Type and Uploading your code.

Step 22: Upload your code. See the Getting Started section:Selecting Arduino Board Type and Uploading your code

OBSERVATION

  • Press the pushbutton several times to see the RGB display different LED colors.

Pinmode decalration.

Pinmode decalration.

Pinmode decalration.

CONCLUSION

This project demonstrated how a push button can be used to control an RGB LED with an Arduino Uno. Each press of the button successfully changed the LED color, showing how input devices can control multiple outputs in a simple electronic system. It helped in understanding circuit connections, programming logic, and real-life applications of interactive lighting systems.
