Project 1.1.5: Triple LEDS

Description	This project shows how to turn on three LEDs at the same time using an Arduino Uno. It introduces the control of multiple LEDs using different Arduino pins.
Use case	This project can represent simple lighting systems, such as streetlights where many lights turn on together.

Components (Things You will need)

					! Resistor

Building the circuit

Things Needed:

• Arduino Uno = 1
• Arduino USB cable = 1
• Led = 3
• Jumper wire = 6
• Resistor = 3

Mounting the component on the breadboard

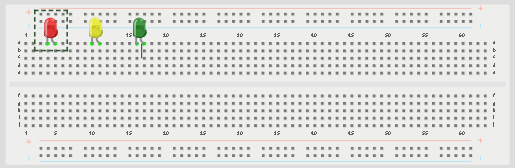

Step 1: Place the three LEDs on the breadboard. For each LED, the longer leg is the positive pin, while the shorter leg is the negative pin.

.

NB: Make sure you identify where the positive pin (+) and the negative pin (-) is connected to on the breadboard. The longer pin of the LED is the positive pin and the shorter one, the negative PIN.

WIRING THE CIRCUIT

Things Needed:

• Jumper wire = 4

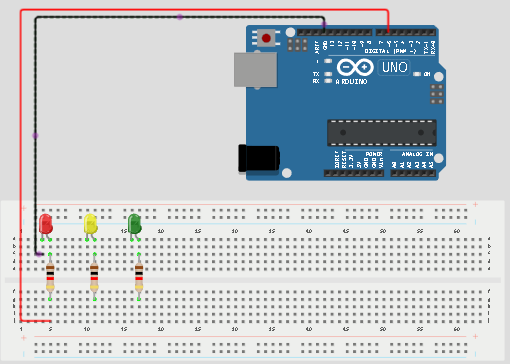

Step 2: Connect the positive leg of the first LED to pin 6 on the Arduino through a 220Ω resistor. Connect its negative leg to GND.

.

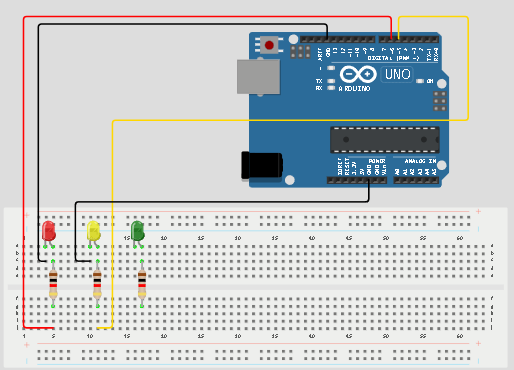

Step 3: Connect the positive leg of the second LED to pin 5 on the Arduino through a 220Ω resistor. Connect its negative leg to GND.

.

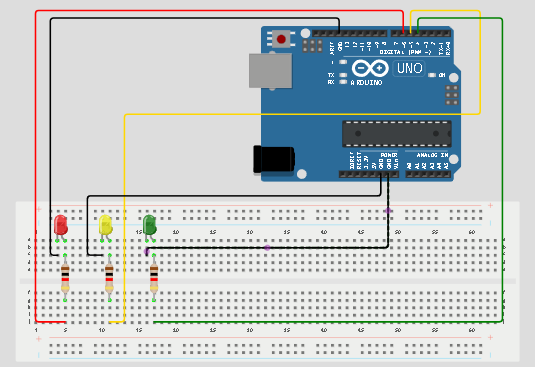

Step 4: Connect the positive leg of the third LED to pin 4 on the Arduino through a 220Ω resistor. Connect its negative leg to GND.

.

make sure you connect the arduino usb use blue cable to the Arduino board.

PROGRAMMING

Step 1: Open your Arduino IDE. See how to set up here: Getting Started.

Step 2: Type the following codes in the void setup function as shown in the image below. ``` pinMode(6, OUTPUT); sets pin 6 as an output pin for the first LED. pinMode(5, OUTPUT); sets pin 5 as an output pin for the second LED. pinMode(4, OUTPUT); sets pin 4 as an output pin for the third LED.

```

.

NB: pinMode will help the Arduino board to decide which port should be activated. The code below will turn off the three light bulbs.

Step 3: Type the following codes in the void loop function.as shown in the image below; ``` digitalWrite(6, HIGH); turns on the first LED. digitalWrite(5, HIGH); turns on the second LED. digitalWrite(4, HIGH); turns on the third LED.

``` .

_NB: To turn this LEDS off, you can change the “HIGH” in the ode into “LOW” _

Step 4: Save your code. See the Getting Started section

Step 5: Select the arduino board and port See the Getting Started section:Selecting Arduino Board Type and Uploading your code.

Step 6: Upload your code. See the Getting Started section:Selecting Arduino Board Type and Uploading your code

OBSERVATION

.

CONCLUSION

This project helps learners understand how to control three LEDs using Arduino. It is a simple introduction to multiple outputs, basic lighting systems, and synchronized LED control.
