Project 2.7.6: Solar Proximity Switch

Description This project activates ultrasonic proximity detection only when the LDR detects nighttime darkness, creating a solar-aware sensor system.
Use case This project can be used in solar-powered security systems, nighttime motion detection, smart outdoor lighting, and energy-efficient automation, where proximity sensing is required only after dark.

Components (Things You will need)

Arduino Uno Arduino USB Cable Breadboard Jumper Wires LDR Module Ultrasonic Sensor

Building the circuit

Things Needed:

  • Arduino Uno = 1
  • Arduino USB cable = 1
  • LDR module = 1
  • Ultrasonic sensor = 1
  • Breadboard = 1
  • Jumper wires

Mounting the component on the breadboard

Step 1: Place the Ultrasonic Sensor and the LDR Module on the breadboard.

Components on breadboard

Connect the Arduino 5V pin to the breadboard's positive (+) power rail and connect the Arduino GND pin to the breadboard's negative (–) power rail to distribute power.

NB: Make sure all components are securely placed on the breadboard with correct orientation.

WIRING THE CIRCUIT

Step 2: Connect the VCC pin of the Ultrasonic Sensor to the positive (+) rail on the breadboard using male-to-male jumper wire.

Wiring diagram

Step 3: Connect the GND pin of the Ultrasonic Sensor to the negative (–) rail of the breadboard using male-to-male jumper wire.

Wiring diagram

Step 4: Connect the TRIG pin of the Ultrasonic Sensor to the Arduino Digital Pin 9 on the Arduino Uno using male-to-male jumper wire.

Wiring diagram

Step 5: Connect the ECHO pin of the Ultrasonic Sensor to the Arduino Digital Pin 10 on the Arduino Uno using male-to-male jumper wire.

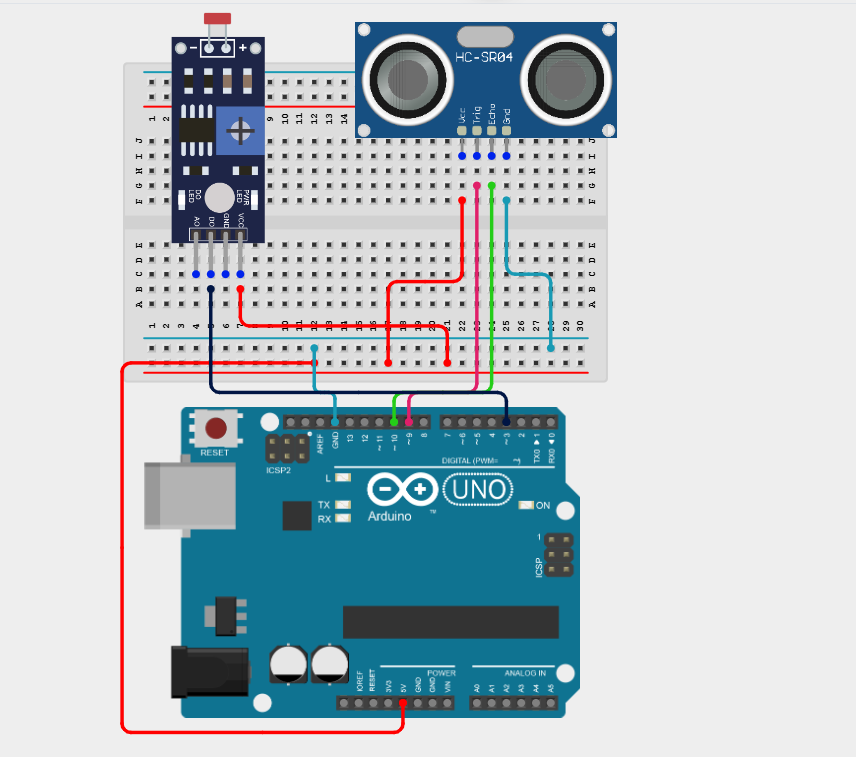

Wiring diagram

Step 6: Connect the D0 pin of the LDR to the Arduino Digital Pin 3 on the Arduino Uno using male-to-male jumper wire.

Wiring diagram

Step 7: Connect the VCC pin of the LDR to the positive (+) rail on the breadboard using male-to-male jumper wire.

Wiring diagram

Step 8: Connect the GND pin of the LDR to the negative (–) rail of the breadboard using male-to-male jumper wire.

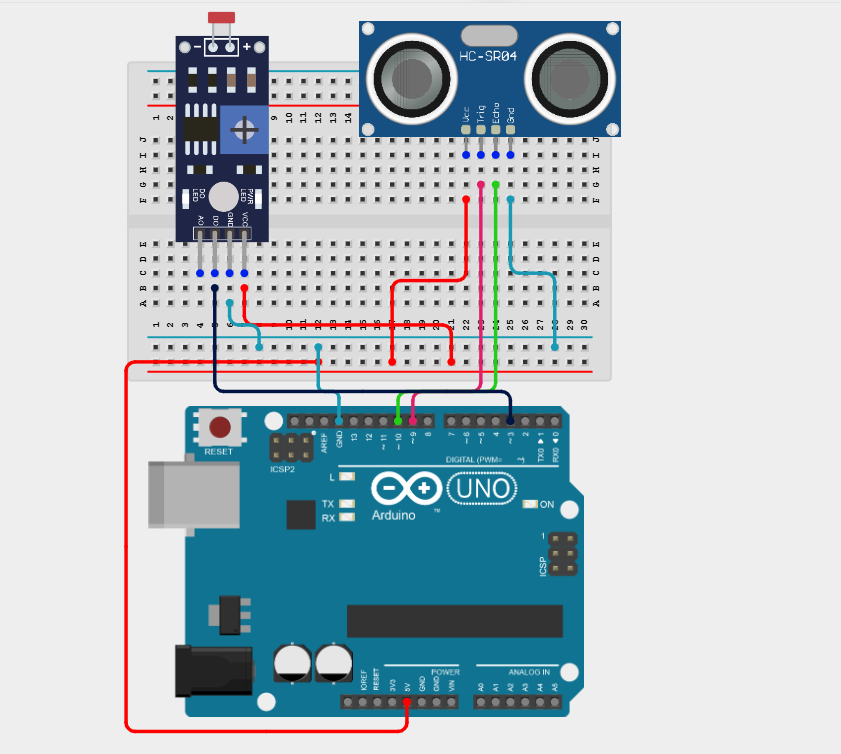

Wiring diagram

Connect the GND pin to the Arduino GND pin

Make sure to connect the Arduino USB cable to the Arduino board.

PROGRAMMING

Step 1: Open your Arduino IDE. See how to set up here: Getting Started.

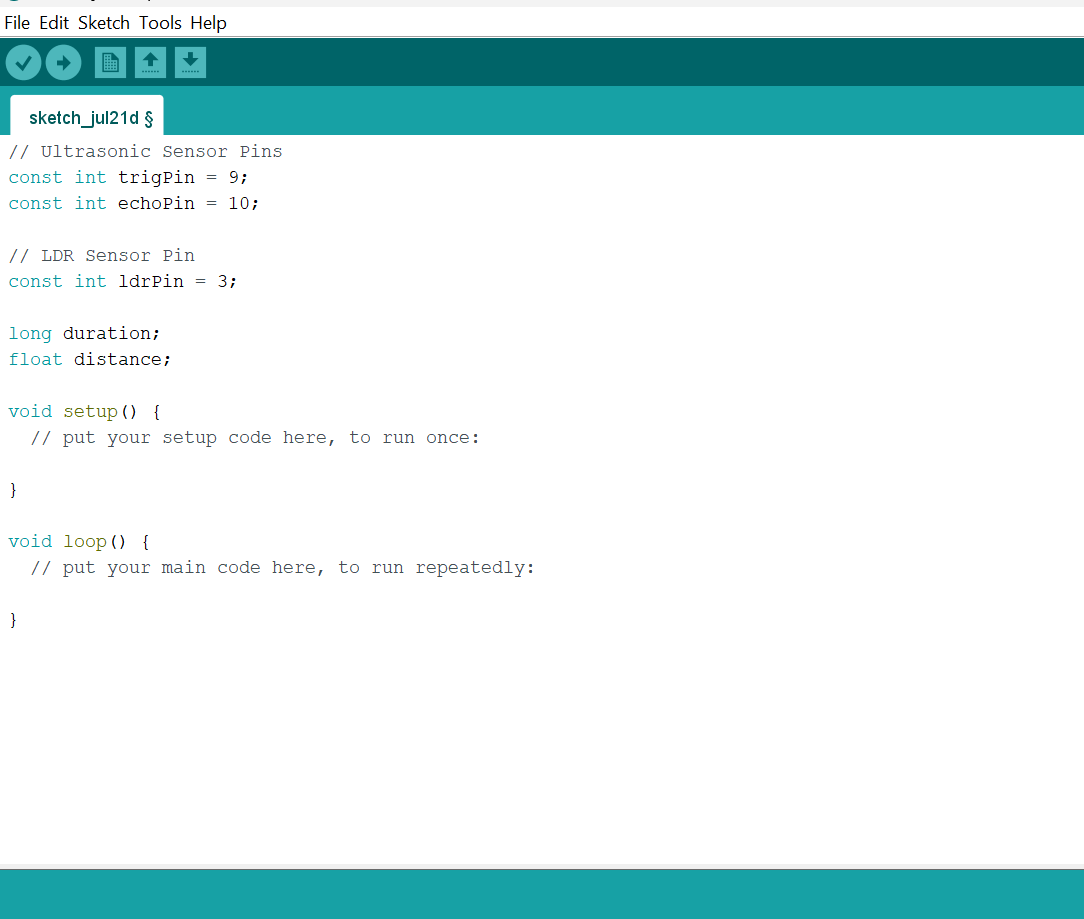

Step 2: Type the following code in your Arduino IDE: const int trigPin = 9;, const int echoPin = 10;, const int ldrPin = 3;, long duration, long distance as shown in the image below.

Wiring diagram

Step 3: Type the following code in your Arduino IDE inside the void setup() function: pinMode(trigPin, OUTPUT);, pinMode(echoPin, INPUT);, pinMode(ldrPin, INPUT);, Serial.begin(9600); as shown in the image below.

Wiring diagram

Step 4: Type the following code in your Arduino IDE inside the void loop() function: if (digitalRead(ldrPin) == LOW) {, Serial.println("Night Detected");, digitalWrite(trigPin, LOW);, delayMicroseconds(2);, digitalWrite(trigPin, HIGH);, delayMicroseconds(10);, digitalWrite(trigPin, LOW);, duration = pulseIn(echoPin, HIGH);, distance = duration * 0.0343 / 2;, Serial.print("Distance: ");, Serial.print(distance);, Serial.println(" cm");}, else{, Serial.println("Daytime Detected");, Serial.println("Ultrasonic Sensor Inactive"); }, delay(500); as shown in the image below.

Wiring diagram

Uploading the code

Step 1: Save your code. See the Getting Started section

Step 2: Select the Arduino board and port. See the Getting Started section

Step 3: Upload your code.

OBSERVATION

The Arduino sends a 10 μs trigger pulse to the ultrasonic sensor. The sensor measures the distance to the nearest object. The measured distance is displayed in the Serial Monitor.

CONCLUSION

This project helps learners understand how to combine multiple components with Arduino to create more complex interactive systems and automation solutions.
