Project 2.11.6: Menu Calibration Selector

Description This project uses a push button to save or store the value selected by a potentiometer dial, creating a simple calibration interface.
Use case This project can be used in sensor calibration, equipment configuration, control panel settings, and embedded systems where user-selected values need to be saved for future operation.

Components (Things You will need)

Arduino Uno Arduino USB Cable Breadboard Jumper Wires Push Button Potentiometer

Building the circuit

Things Needed:

  • Arduino Uno = 1
  • Arduino USB cable = 1
  • Push button = 1
  • Potentiometer = 1
  • Breadboard = 1
  • Jumper wires

Mounting the component on the breadboard

Step 1: Place the push button and potentiometer on the breadboard.

Components on breadboard

NB: Make sure all components are securely placed on the breadboard with correct orientation.

WIRING THE CIRCUIT

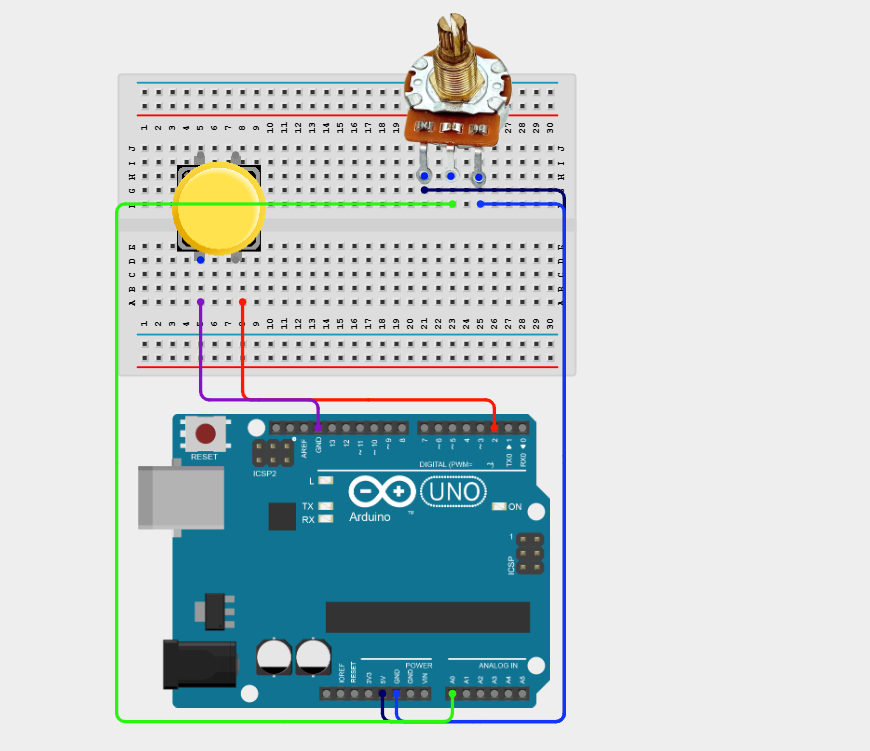

Step 2: Connect one outer pin of the potentiometer to the Arduino 5V pin on the Arduino Uno using male-to-male jumper wire.

Wiring diagram

Step 3: Connect the opposite outer pin of the potentiometer to the Arduino GND pin using male-to-male jumper wire.

Wiring diagram

Step 4: Connect the centre (wiper) pin of the potentiometer to Analog Pin A0 on the Arduino Uno using a male-to-male jumper wire.

Wiring diagram

Step 5: Connect one terminal of the push button to Digital Pin 2 and the other to GND on the Arduino Uno using a male-to-male jumper wire.

Wiring diagram

Make sure to connect the Arduino USB cable to the Arduino board.

PROGRAMMING

Step 1: Open your Arduino IDE. See how to set up here: Getting Started.

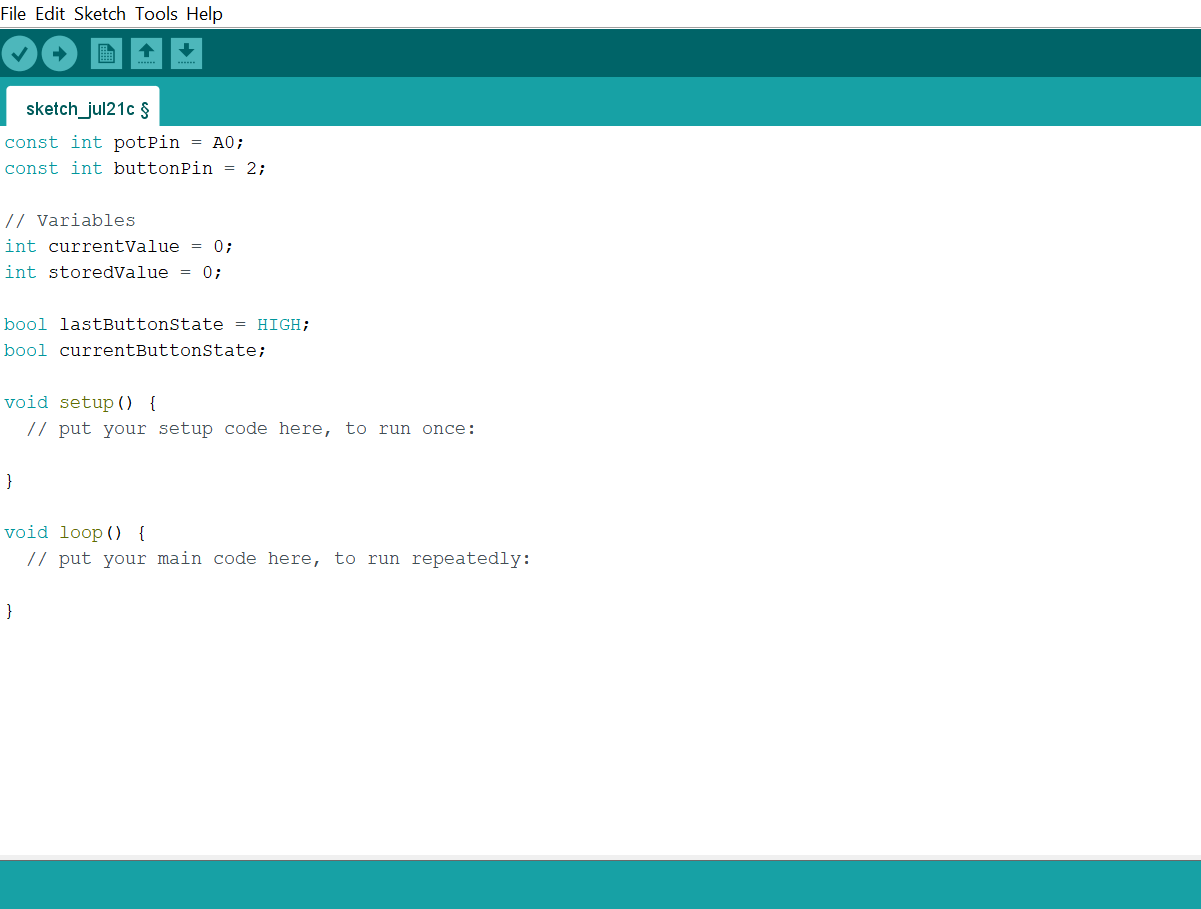

Step 2: Type the following code in your Arduino IDE: const int potPin = A0;, const int buttonPin = 2;, int currentValue = 0;, int storedValue = 0;,bool lastButtonState = HIGH;, bool currentButtonState; as shown in the image below.

Wiring diagram

Step 3: Type the following code in your Arduino IDE inside the void setup() function: pinMode(buttonPin, INPUT_PULLUP);, Serial.begin(9600);, Serial.println("=== Potentiometer Calibration ===");, Serial.println("Rotate the potentiometer.");,Serial.println("Press the button to save the current value."); as shown in the image below.

Wiring diagram

Step 4: Type the following code in your Arduino IDE inside the void setup() function: currentValue = analogRead(potPin);, currentButtonState = digitalRead(buttonPin);, if (lastButtonState == HIGH && currentButtonState == LOW) {, delay(20);,storedValue = currentValue;, Serial.println("----------------------------");, Serial.print("Saved Value: ");, Serial.println(storedValue); }, lastButtonState = currentButtonState;, Serial.print("Current: ");, Serial.print(currentValue);, Serial.print(" Stored: ");,Serial.println(storedValue);, delay(20); as shown in the image below.

Wiring diagram

Uploading the code

Step 1: Save your code. See the Getting Started section

Step 2: Select the Arduino board and port. See the Getting Started section

Step 3: Upload your code.

The Arduino continuously reads the potentiometer and monitors the push button. Each button press stores the latest potentiometer value, allowing the user to recalibrate the system whenever needed. The Serial Monitor displays the current and stored values.

CONCLUSION

This project helps learners understand how to combine multiple components with Arduino to create more complex interactive systems and automation solutions.
